High Speed Stacking Door
Width: 1000-5000mm
Height: 1000-5000mm
Opening speed: 1.2m/s
Closing speed: 0.8m/s
Window: Standard: 1.5mm thickness
Color: Yellow, orange, blue and more
Category：High Speed Door
Product Details

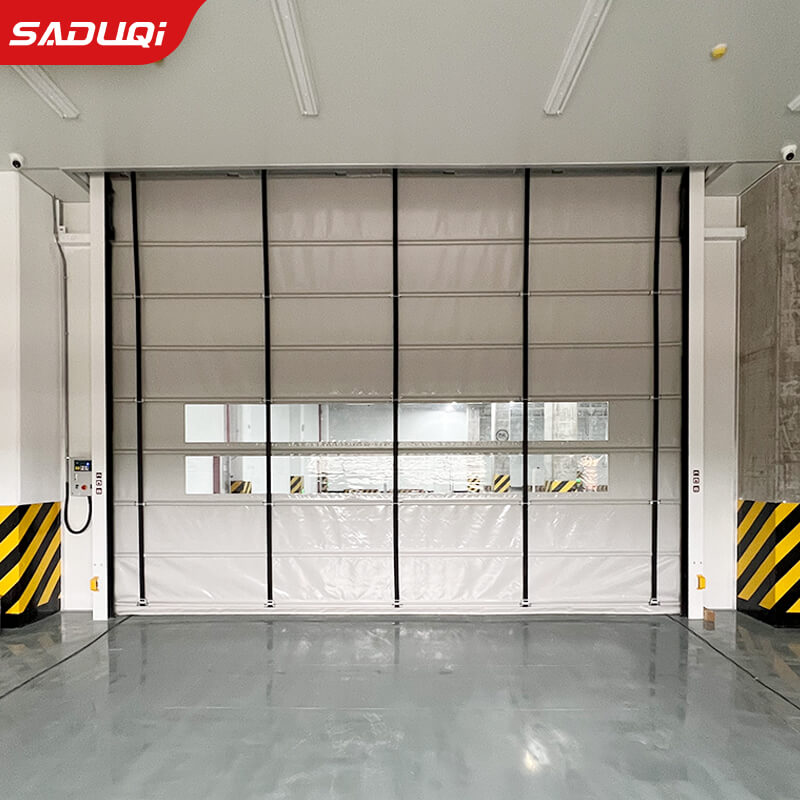

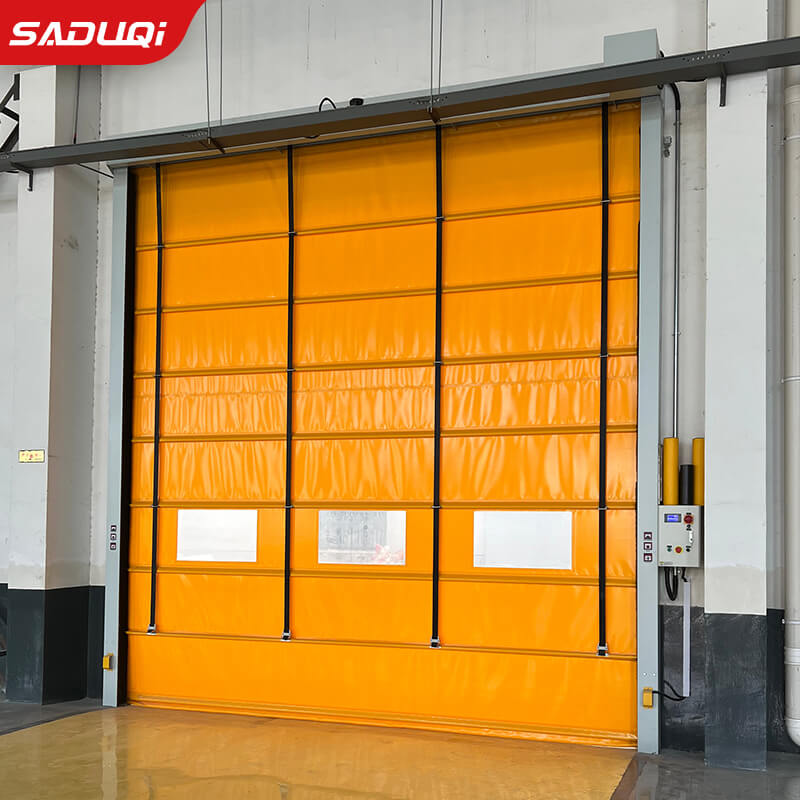

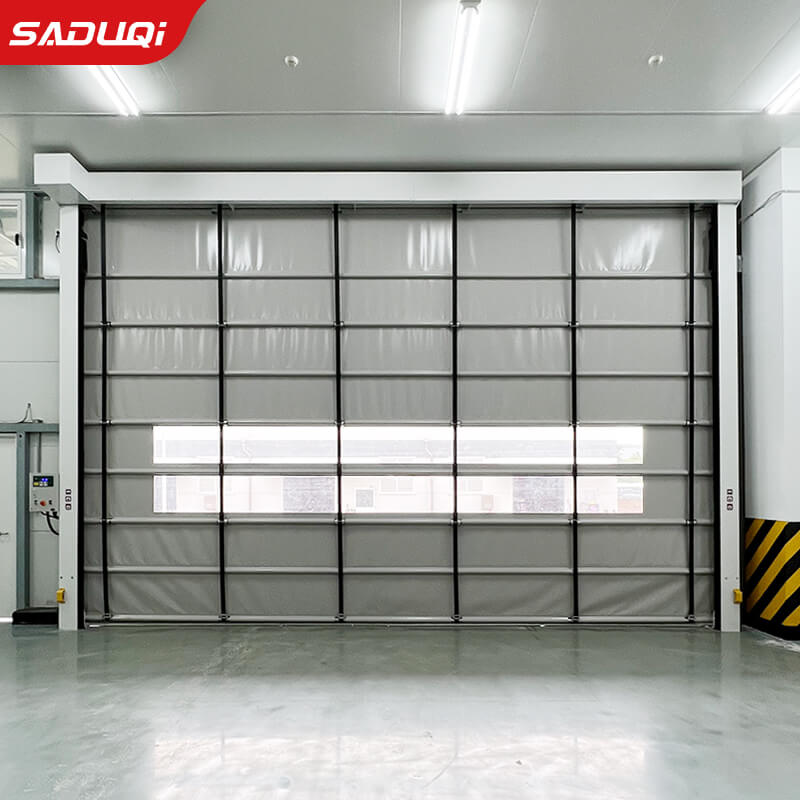

The High Speed Stacking Door is an industrial door that opens in a unique way and is suitable for large doorways or places with a high frequency of opening and closing. Its door panels consist of multiple layers of folding structures that are stacked together in an ascending manner.
High Speed Stacking Door has many significant features that make it widely used in industrial applications, especially in logistics, aviation, harbours and warehouses.
| Operating environment | For use in the workshop |
| Sizes | Width: 1000-5000mm Height: 1000-5000mm |
| Opening and closing speed | Opening speed 1.2m/s Closing speed: 0.8m/s |
| Door curtain | High-strength polyester fiber PVC door curtain, standard thickness 0.8mm, other thicknesses available |
| Door curtain color | Yellow, orange, blue and more |
| Window | Standard: 1.5mm thickness |
| Slideway | Galvanized steel rail as standard, painted colors available Stainless steel and aluminum rails available |
| Box | Standard steel box cover, paint colors available Also available in stainless steel |
| Open method | Three buttons, remote control, geomagnetic, radar, pull rope, etc. |
| Safety device | Cordless safety bottom edge and rail safety protection photoelectric as standard |
| Control system | PLC & Inverter |
Frequently Asked Questions
Covered over 60countries on all the five continents.
Within 10-15 days for trial order，for full container，depends on the quantity.
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Sure，we had done for many client within their own logo and design.
