Spiral High Speed Door
Width: 1250-8000mm
Height: 2000-8000mm
Opening speed: 1.2~2m/s
Closing speed: 0.8m/s
Window: Standard with 2 rows of windows
color: Yellow, orange, blue and more
Category：High Speed Door
Product Details

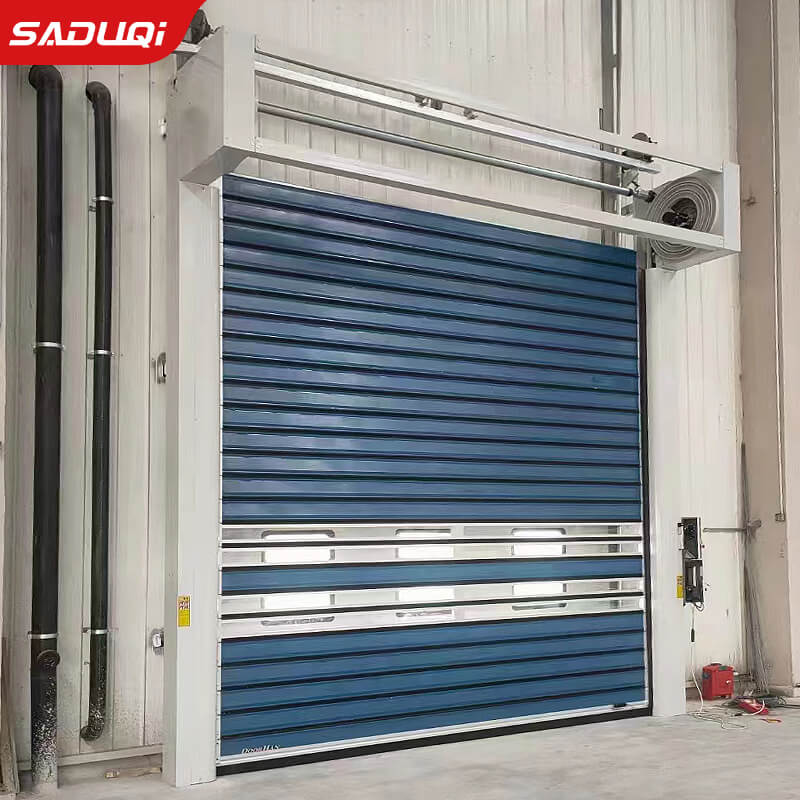

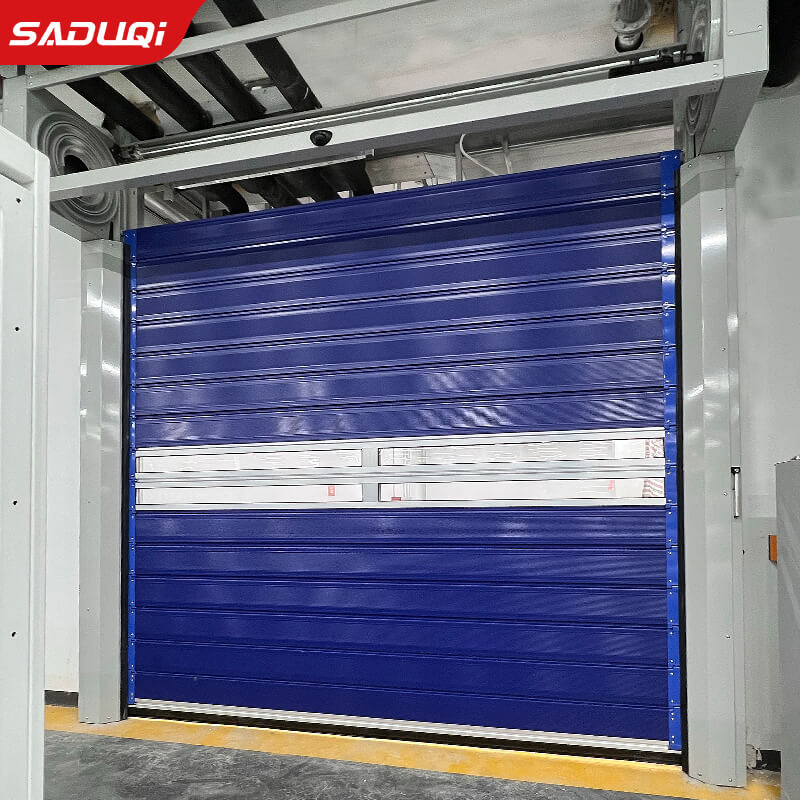

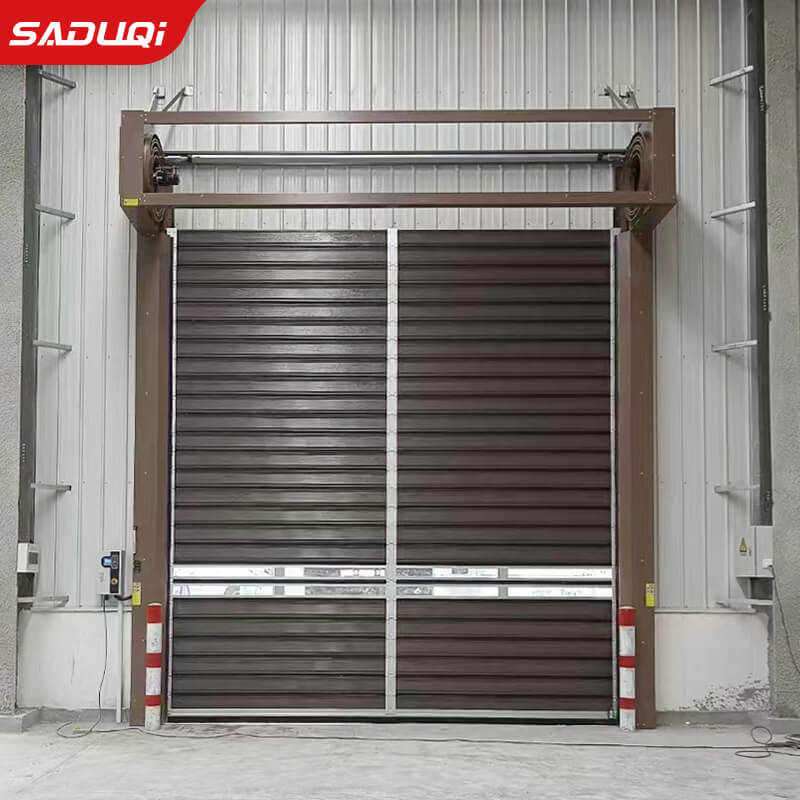

High Speed Spiral Door is an economical fast rolling door with high-speed partition function launched by our company. The high-speed switch cuts off the air convection inside and outside, which can prevent outsiders from intruding and resist weather changes.
High Speed Spiral Door Maximum door size: 7000mm*7000mm.
Wind resistance: The wind resistance is 3.5kPa.
| Operating environment | Internal or external doors |
| Sizes | Width:1250-8000mm Height:2000-8000mm |
| Opening and closing speed | Opening speed 1.2~2m/s Closing speed: 0.8m/s |
| Door curtain | 43mm/80mm polyurethane door panel |
| Door curtain color | Yellow, orange, blue and more |
| Window | Standard with 2 rows of windows |
| Balance system | 6 high-strength balance springs |
| Open method | Three buttons,remote control,geomagnetic,radar,pull rope,etc. |
| Safety device | Cordless safety bottom edge and rail safety protection photoelectric as standard |
| Motor and reducer | Servo motor,220V/380V,0.55-1.5kw other brands are optional |
| Control system | Servo control systems |
| Manual opening | Manual opening after power failure |
Frequently Asked Questions
Covered over 60countries on all the five continents.
Within 10-15 days for trial order，for full container，depends on the quantity.
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Sure，we had done for many client within their own logo and design.
