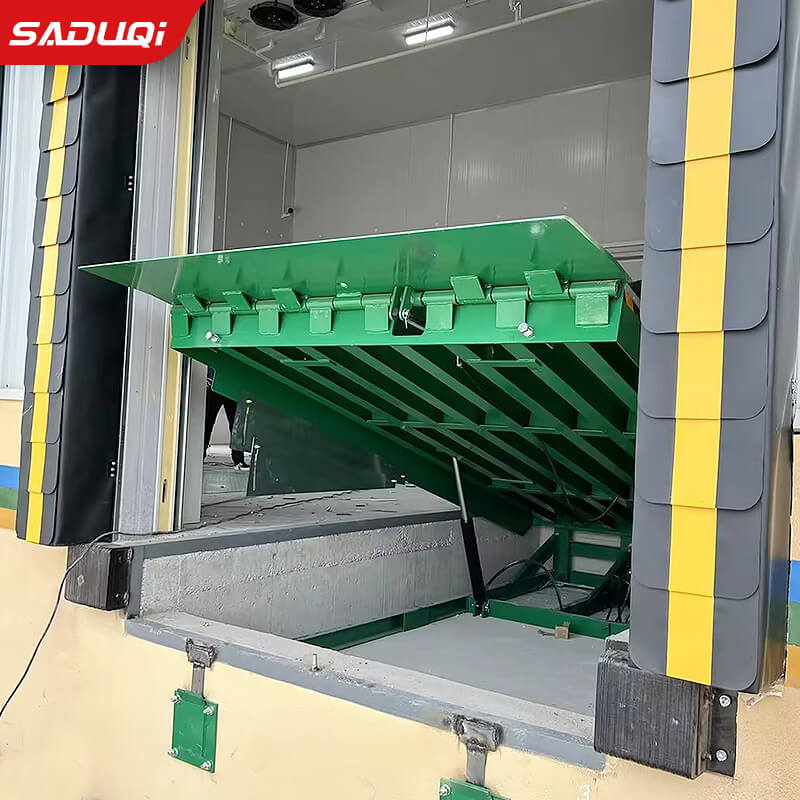

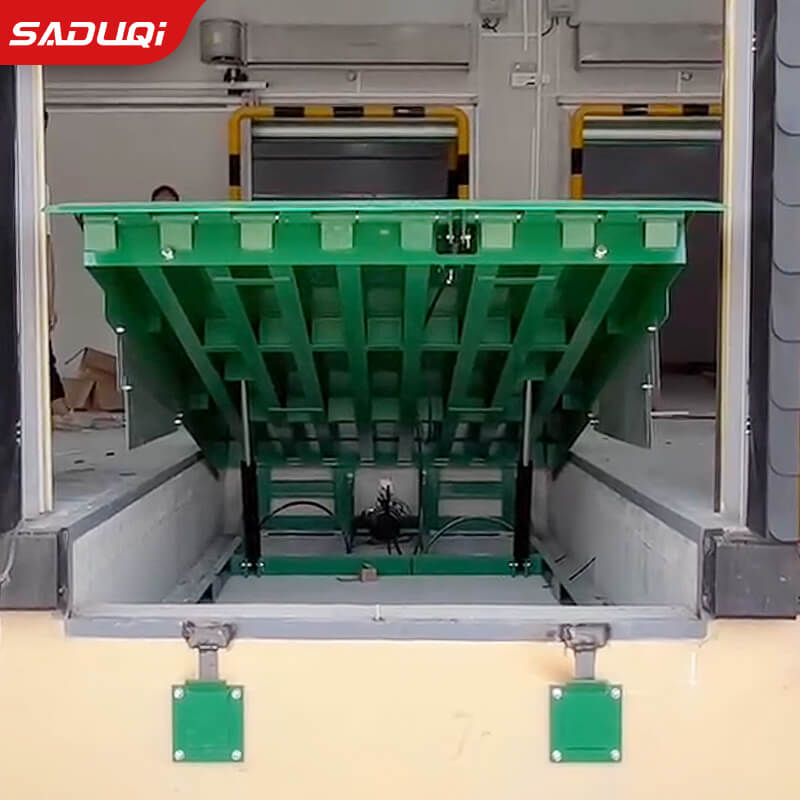

Hydraulic Dock Leveler
Load: Dynamic load 6-25 tons
Platform width: 1830mm, 2000mm, 2130mm
Platform length: 2000mm,2500mm,3000mm,3500mm
Hydraulic power unit: 380V/0.75Kw
Tongue length:Standard 400mm
Colors: more
Category：Dock Leveler
Product Details
Hydraulic dock leveler is an efficient and safe unloading equipment, which is widely used in logistics parks, wharves, factories, warehouses and other places. It is mainly composed of steel structure, hydraulic device and electrical control device and other components.
The product has the features of fast unloading speed, high unloading efficiency, long service life, easy operation, etc. It is one of the indispensable equipments in the modern logistics industry.
| Application environment | Normal temperature logistics |
| Load | Dynamic load 6-25 tons |
| Platform width | 1830mm, 2000mm, 2130mm |
| Platform length | 2000mm,2500mm,3000mm,3500mm |
| Non-standard size | Can be customized |
| Tongue length | Standard 400mm, another 500mm optional |
| Tongue plate type | Adopting 8mm high strength nonslip patterned steel plate, different bottom reinforcement structure according to different loads |
| Table Structure | According to the different loads of different selection of 14mm, 16mm, 20mm thickness of high- strength non-slip patterned steel plate |
| Tongue plate | Imported hydraulic system |
| Hydraulic power unit | 380V/0.75Kw |
| Safety Configuration | Platform fall prevention function, antitoe pinch safety protection, penetrating maintenance support bar, night self-locking protection |
| Colors | Black, grey, blue, green, other colors to order |
Frequently Asked Questions
Covered over 60countries on all the five continents.
Within 10-15 days for trial order，for full container，depends on the quantity.
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Sure，we had done for many client within their own logo and design.
