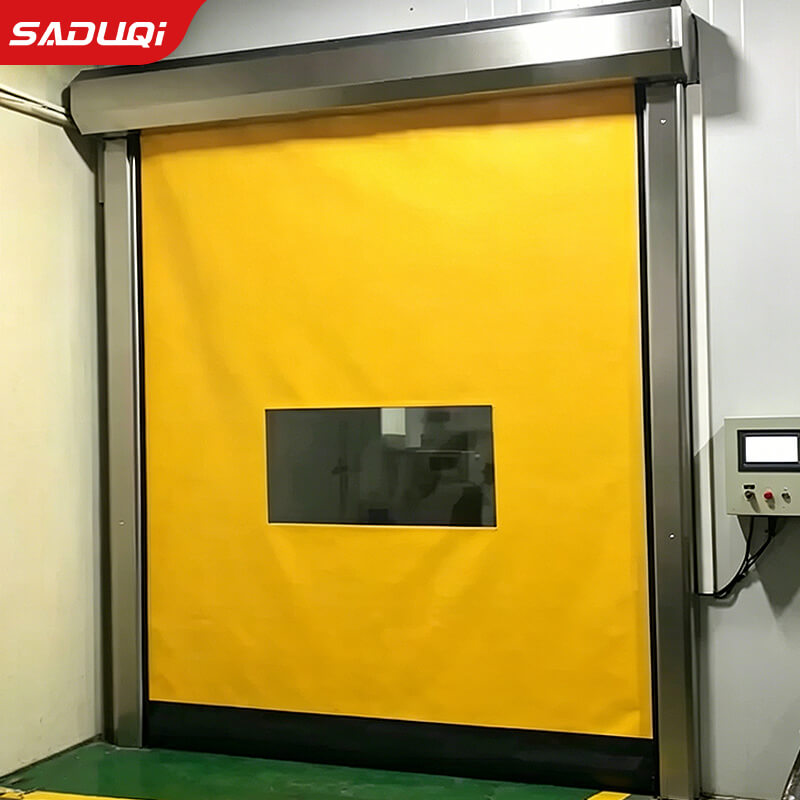

Zipper High Speed Door
Width: 1000-5000mm
Height: 1000-5000mm
Opening speed: 1.2m/s
Closing speed: 0.8m/s
Door curtain: thickness 0.8mm
color:Yellow, orange, blue and more
Category：High Speed Door
Product Details
The Zipper High Speed Door is specially designed for indoor applications. Relying on a unique design, it can provide the best air-tightness. It only needs very little space to protect your environment from ventilation, humidity, dust, and mosquitoes.
At the same time, the Zipper High Speed Door has high-speed operation, good heat preservation and air-tightness, which can well improve the traffic flow of the operation, make the working environment of employees more comfortable, and can greatly save energy consumption.
Anti-collision recovery technology structure: In the event of an ac-cidental impact, the High Speed Door curtain can be derailed and automatically reset during the ascent. The whole process does not require manual repair and control unit reset.
| Operating environment | For use in the workshop |
| Sizes | Width: 1000-5000mm Height: 1000-5000mm |
| Opening and closing speed | Opening speed 1.2m/s Closing speed: 0.8m/s |
| Door curtain | High-strength polyester fiber PVC door curtain, standard thickness 0.8mm, other thicknesses available |
| Door curtain color | Yellow, orange, blue and more |
| Window | Standard, 1.5mm thickness |
| Slideway | Galvanized steel rail as standard, painted colors available Stainless steel and aluminum rails available |
| Box | Standard steel box cover, paint colors available Also available in stainless steel |
| Open method | Three buttons, remote control, geomagnetic, radar, pull rope, etc. |
| Safety device | Cordless safety bottom edge and rail safety protection photoelectric as standard |
| Control system | PLC & Inverter |
Frequently Asked Questions
Covered over 60countries on all the five continents.
Within 10-15 days for trial order，for full container，depends on the quantity.
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Sure，we had done for many client within their own logo and design.
