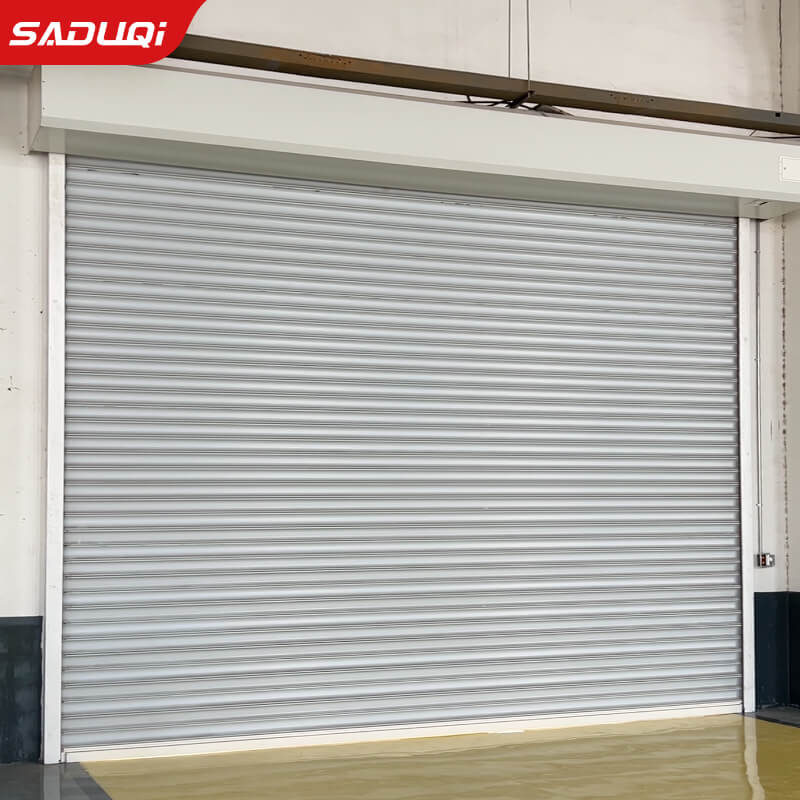

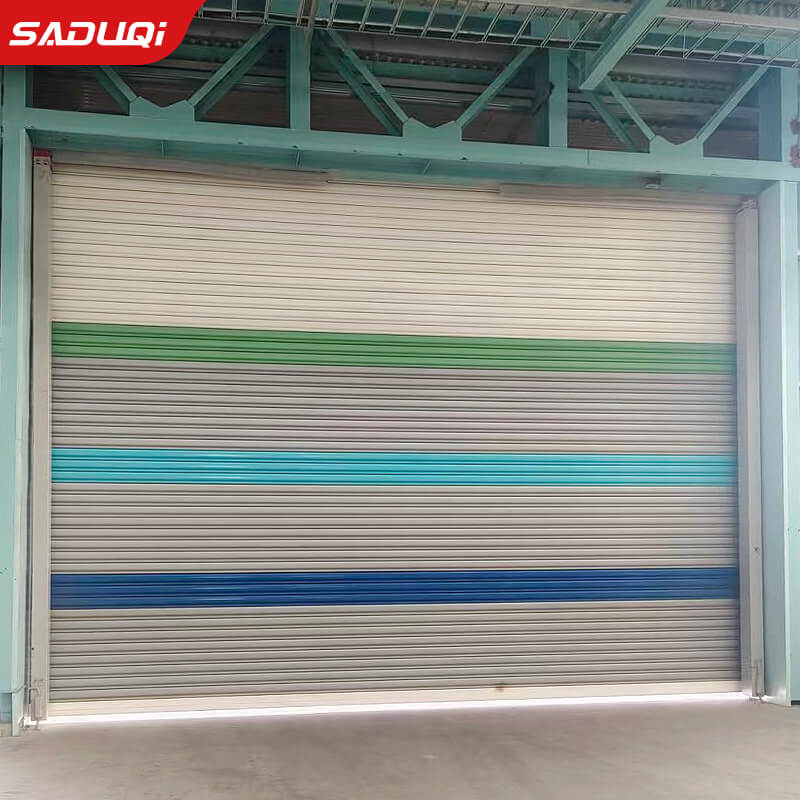

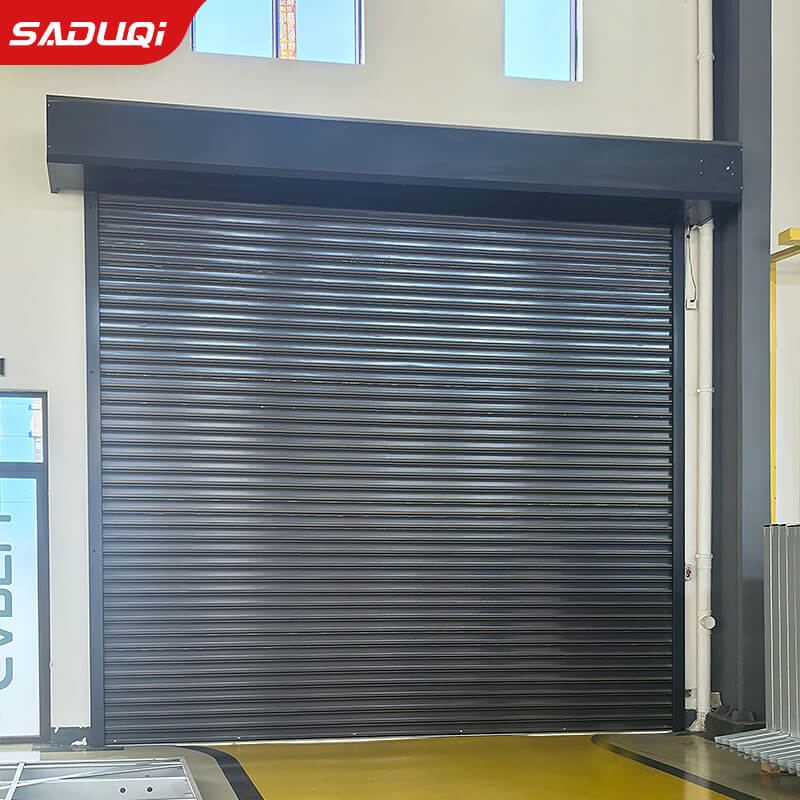

Steel Wind-resistant Roller Shutter Door
Slat thickness: 1.0–1.2 mm
Slat width: 120 / 180 / 240 / 287.5 mm
Opening dimensions: Width ≤8 m, height ≤8 m
Wind resistance: force 8
Noise: ≤55 dB
Service life: ≥10 years
Category：Roller Shutter Door
Product Details
The main features of wind-resistant rolling doors include high strength, corrosion resistance, strong wind resistance and long service life. Wind-resistant rolling door usually uses galvanized steel as the material, this material is not only high strength, but also can effectively resist external damage and corrosion.
In addition, the windproof rolling shutter door door plate is wider, larger arc, with strong wind torsion, can be used in windy areas, and long service life, wear and corrosion resistance.
| Type | Standard | Reinforced (typhoon-prone areas) | Remarks |
| Material | Hot-dip galvanised steel sheet | High-strength galvanised steel sheet | Optional 304 stainless steel |
| Slat thickness | 1.0–1.2 mm | 1.5–2.0 mm | ≥1.5 mm (wind resistance) |
| Slat width | 120 / 180 / 240 / 287.5 mm | 287.5–320 mm (high-arc) | The high-arc design offers better wind resistance |
| Opening dimensions | Width ≤8 m, height ≤8 m | Width ≤12 m, height ≤12 m | Extra-large openings require reinforced beams |
| Wind resistance | force 8 | forces 10–12 | Force 12 ≈ 32.7–35 m/s |
| Motor power | 0.37–0.75 kW | 0.75–1.5 kW | |
| Power supply | Single-phase 220V/50Hz | Three-phase 380V/50Hz | |
| Noise | ≤55 dB | ≤52 dB | |
| Service life | ≥10 years | ≥15 years |
Frequently Asked Questions
Covered over 60countries on all the five continents.
Within 10-15 days for trial order，for full container，depends on the quantity.
Easy to install, once we cooperate，we will offer you related user manual or installation video. And you can contact our salesman if you have any question. Of course we can also send our engineer to your project site for installation guide if necessary.
Sure，we had done for many client within their own logo and design.
